Westinghouse 150 DHP 750C 1200 A 15 kV Air Circuit Breakers - Used

Condition: Used

Four used Westinghouse Canada Inc. Type DHP Porcel-line air circuit breakers are available at an asking price of CAD 9,500 each. B4 has a seller-reported cable short caused by a nail and requires wire repair or replacement. A discount from the asking price for B4 is available on request.

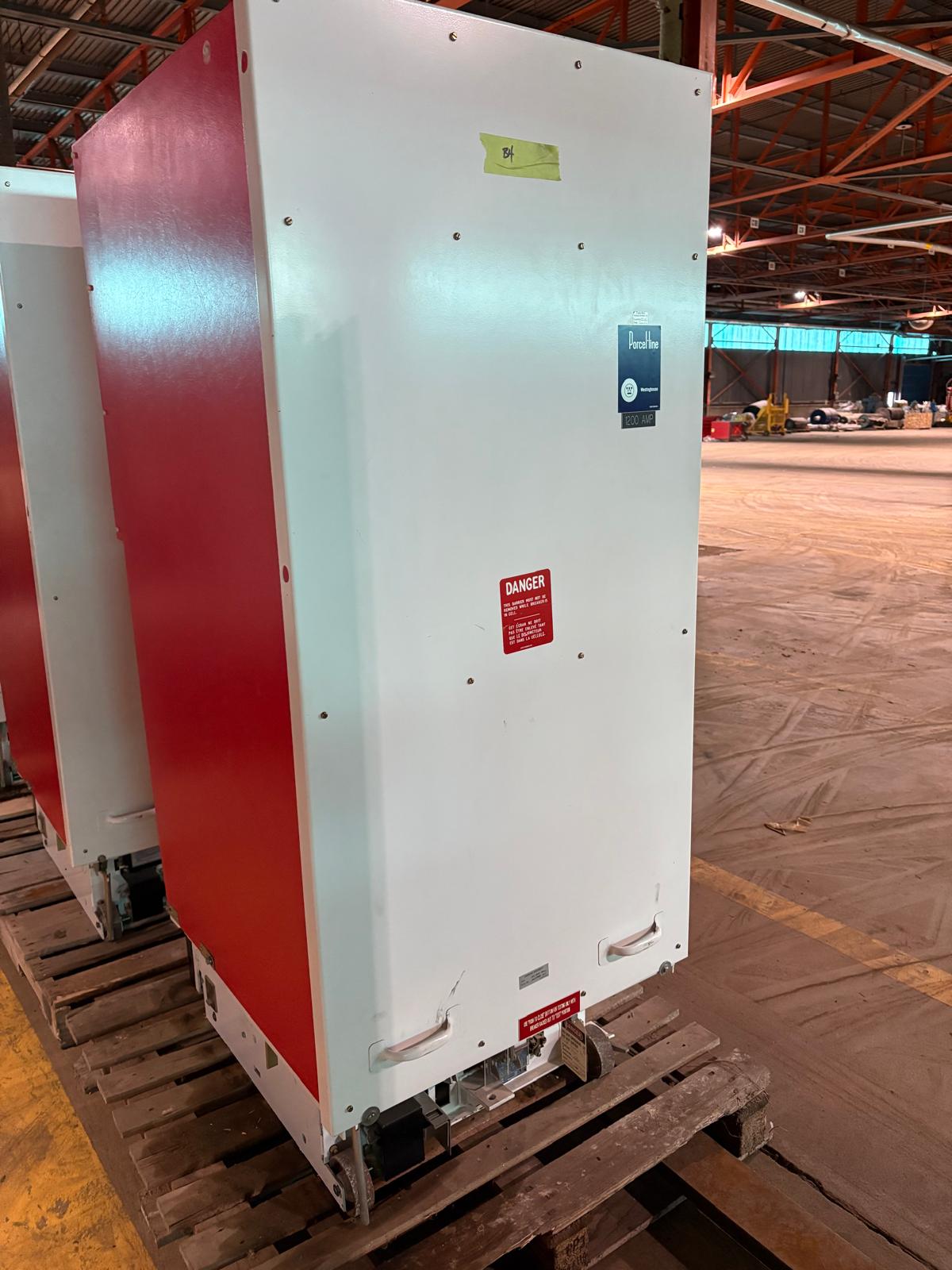

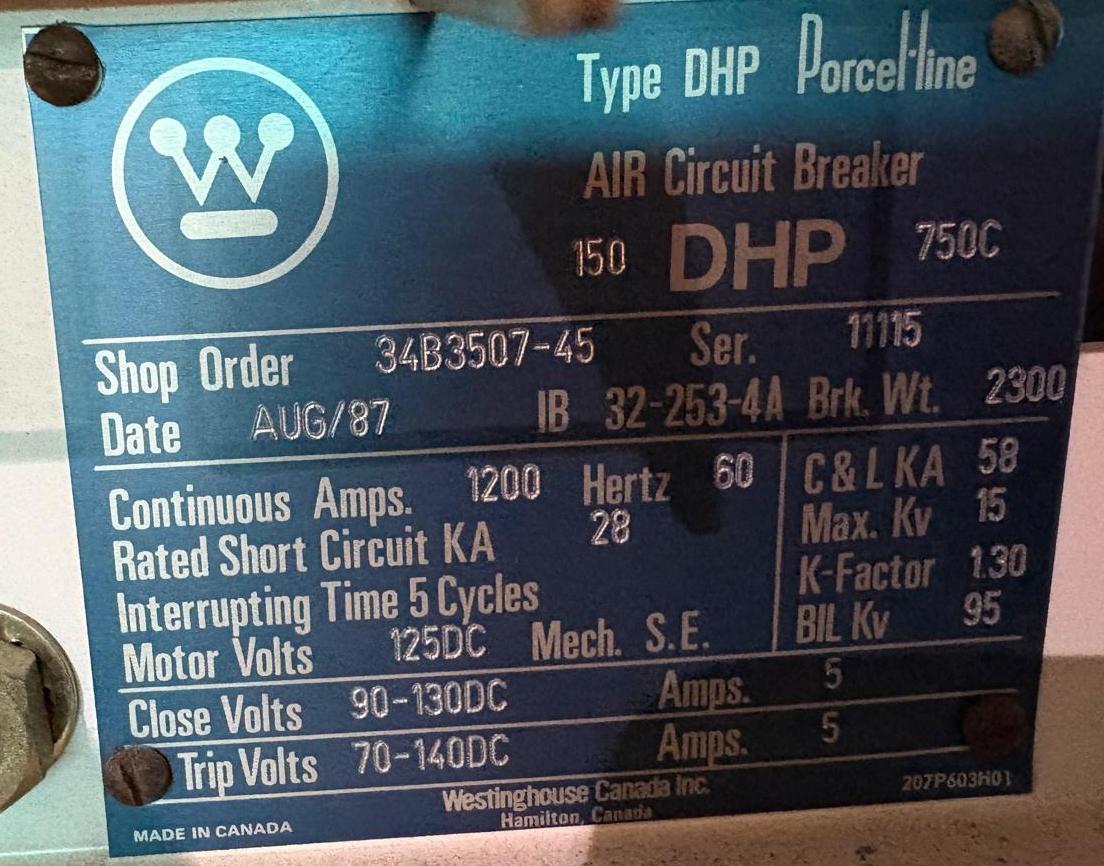

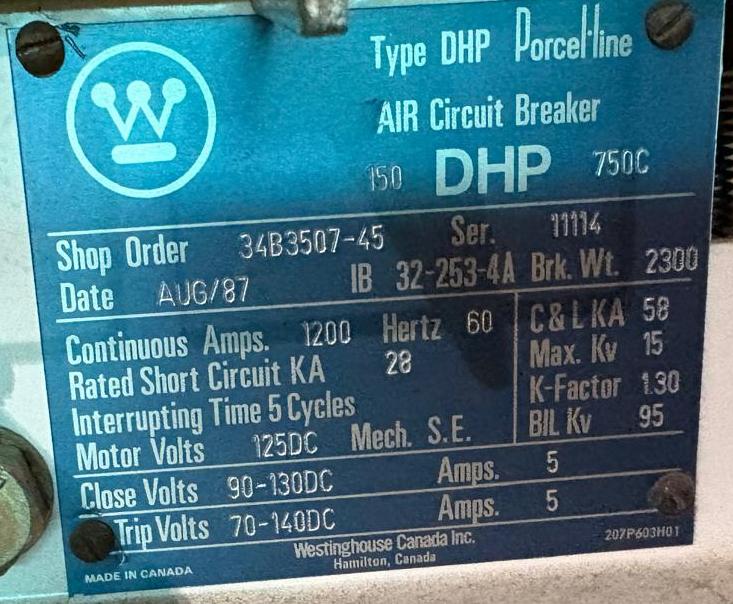

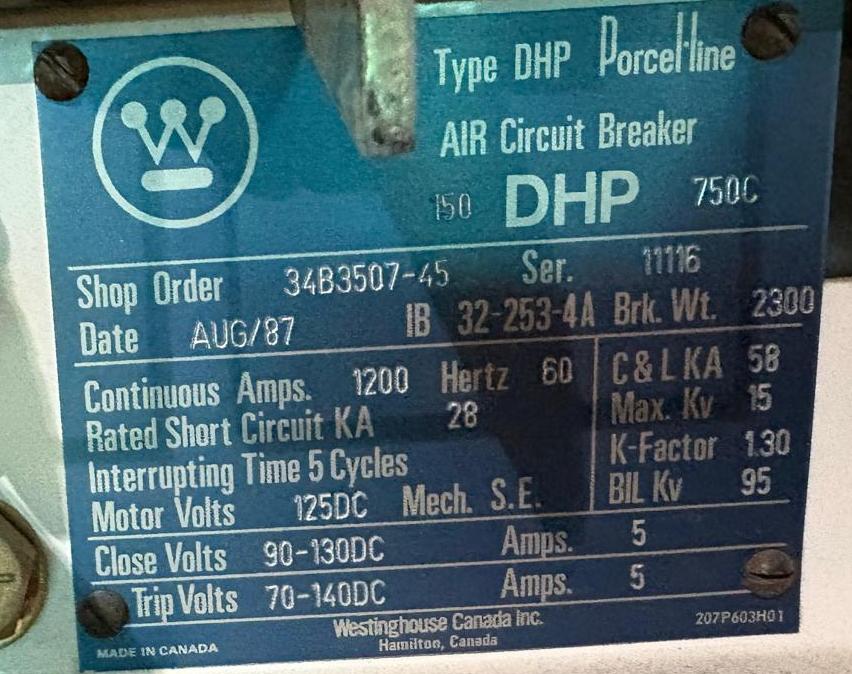

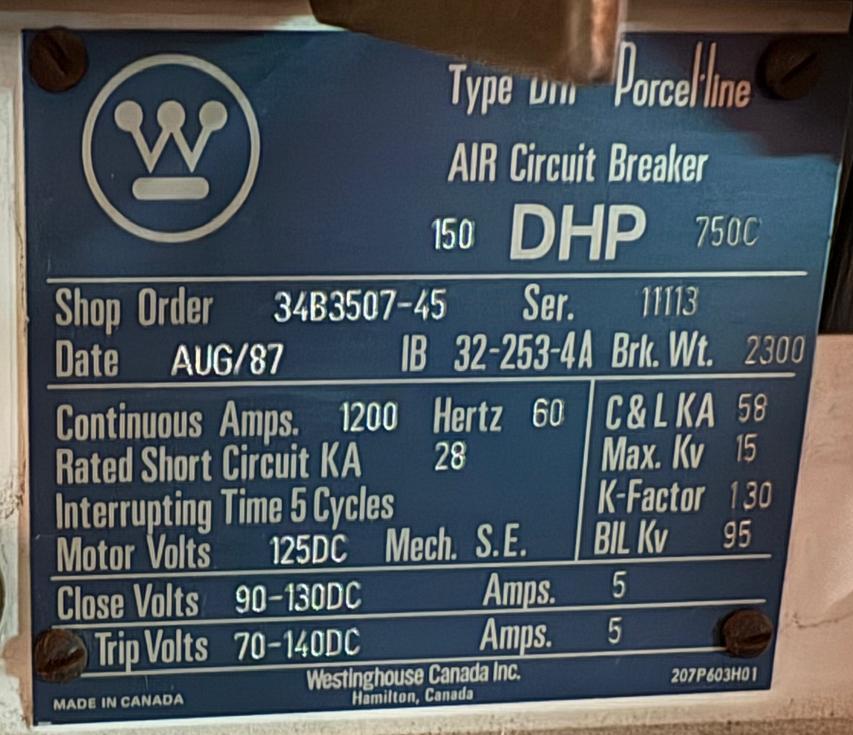

The four supplied unit nameplates show designation 150 DHP 750C, 1200 A continuous current, 15 kV maximum voltage, 28 kA rated short-circuit current and 60 Hz. Seller photo labels identify Spare as serial 11114, B6 as 11115, B5 as 11116 and B4 as 11113. All four plates show shop order 34B3507-45 and AUG/87. The selected gallery includes breaker overviews for Spare and B4 plus each unit's nameplate. B5 and B6 relay/control cabinet views are retained privately and do not establish that those cabinets are included in the breaker sale.

Used, as-is condition. Testing status and current operation of the set are unknown. No current test report or warranty is represented. B4 is specifically offered as requiring wire repair or replacement; repair completion is not confirmed and the extent of any additional electrical damage is unknown. Exterior views show surface marks and storage wear, including marks around B4's lower handles. Overall completeness and internal condition cannot be established from the supplied exterior photos. Buyer inspection and confirmation of the selected unit's condition and suitability are required before use.

Located in Prince Albert, Saskatchewan, Canada. Custom freight quote required. Conservative planning estimate per breaker: 2,300 lb and 84 x 60 x 100 in, not measured packed gross data. The nameplates mark Brk. Wt. 2300 without a printed unit. Final packed weight, dimensions, skid capacity, securement and loading arrangements must be confirmed before a binding freight quote or shipment.
