Westinghouse 150 DHP 750C 2000 A 15 kV Air Circuit Breaker - Used

Condition: Used

Two used Westinghouse Canada Inc. Type DHP Porcel-line air circuit breakers are available at CAD 12,500 each. Both supplied nameplates show designation 150 DHP 750C, 2000 A continuous current, 15 kV maximum voltage, 28 kA rated short-circuit current and 60 Hz.

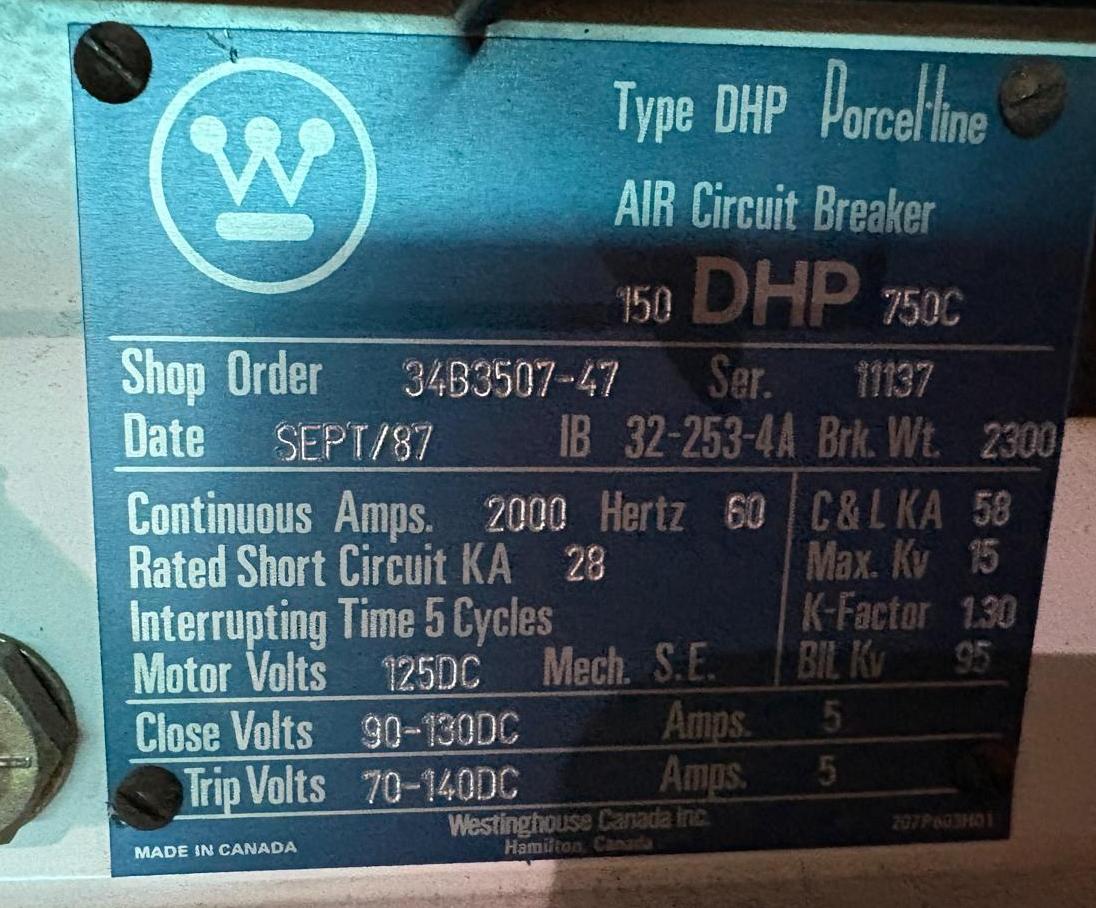

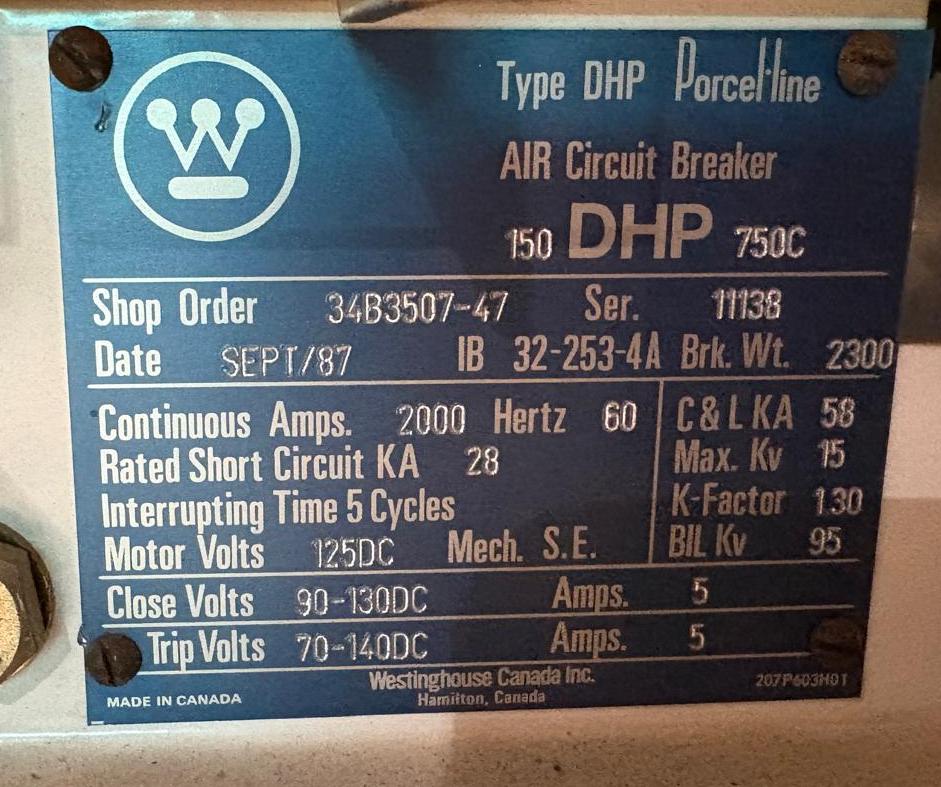

Unit identification: B2 has serial 11138, shown in the photo named B2 - 2000 amp (2).jpg. B3 has serial 11137, shown in B3 - 2000 amp (2).jpg. Both plates show shop order 34B3507-47 and SEPT/87. The overview photo is B3, visibly marked B3 and 2000 AMP; an overview of B2 has not been supplied. The three-photo gallery shows the B3 overview, B3 nameplate and B2 nameplate in that order.

Used, as-is condition. Testing status and current operation are unknown. No current test report or warranty is represented. The supplied overview shows minor surface marks and shop wear; internal components and completeness cannot be established from the exterior photo. Buyer inspection and confirmation of the selected unit's condition and suitability are required before use.

Located in Prince Albert, Saskatchewan, Canada. Custom freight quote required. Planning estimate per breaker: 2,300 lb and 48 x 48 x 96 in; these are estimated values, not measured packed gross data. The plates show Brk. Wt. 2300 without a printed unit. Final packed weight, dimensions, skid capacity, securement and loading arrangements must be confirmed before a binding freight quote or shipment.
